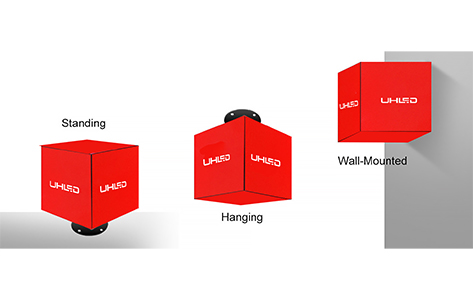

Multiple installation methods: supports multiple installation methods such as hanging, wall hanging, floor hanging, etc., to adapt to different space requirements.

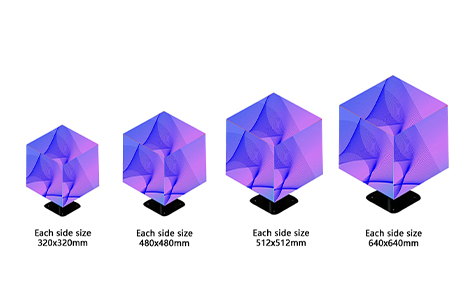

Multiple sizes available: provides a variety of sizes to meet the display requirements of different scenes.

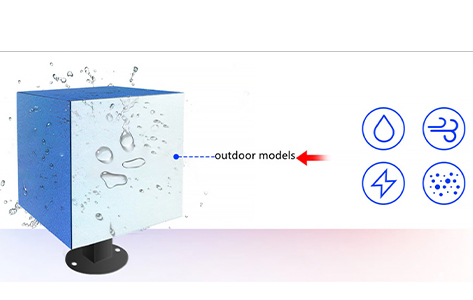

Indoor and outdoor general use: suitable for indoor and outdoor environments, with waterproof, dustproof, and other characteristics, adapt to various climatic conditions.
High brightness and clarity: using high-brightness LED lamp beads to ensure that it is still clearly visible in strong light environments, and the display effect is excellent.

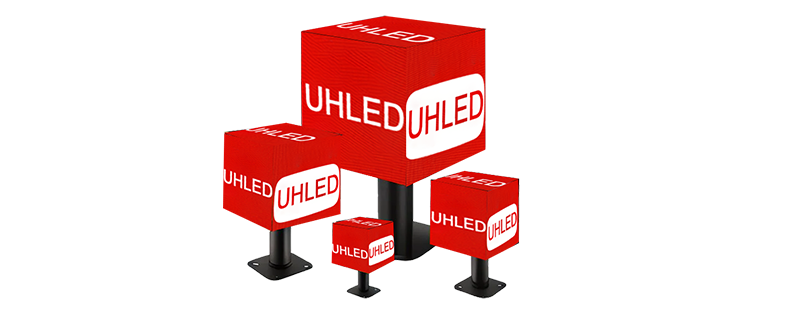

Modular design: The magic cube screen adopts modular design, which is easy to splice and expand, and flexibly adapts to the installation requirements of different scenes.
Strong durability: using high-quality materials, with a long service life and stable performance, suitable for long-term use.
Intelligent control: supports remote control and intelligent adjustment, which is convenient for users to adjust the brightness, color and display content according to their needs.
Energy saving and environmental protection: adopts low power consumption design, energy saving and environmental protection, and reduces operating costs.
Technical Parameter | ||||||
Pixel Pitch | P1.538 | P1.86 | P2 | P2.5 | P3 | P3.91 |
Application | Indoor | Indoor & Outdoor | Outdoor | Indoor & Outdoor | ||
Module Size | 320*160mm | 320*160mm | 320*160mm | 320*160mm 160*160mm |
192*192mm | 250*250mm |
Cabinet Size | 320*320*5 640*640*4 640*640*5 |
320*320*5 640*640*4 640*640*5 |
320*320*5 640*640*4 640*640*5 |
320*320*5 480*480*4 480*480*5 640*640*4 640*640*5 |
384*384*4 384*384*5 |
500*500*4 500*500*5 |
Cabinet Density | 422754dot/㎡ | 289051dot/㎡ | 250000dot/㎡ | 160000dot/㎡ | 111111dot/㎡ | 65410dot/㎡ |
LED Configuration | SMD1212 | SMD1212 | SMD1515 | SMD1515 / SMD1415 | SMD1415 | SMD2020 / SMD1921 |
Brightness | 600cd/㎡ | 600cd/㎡ | 800cd/㎡ | 600cd/㎡ 5000cd/㎡ |
5300cd/㎡ | 800cd/㎡ 5000cd/㎡ |
