Flexible and portable, cost-saving:

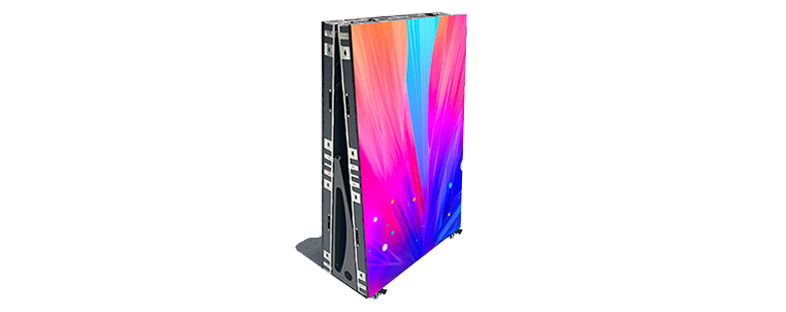

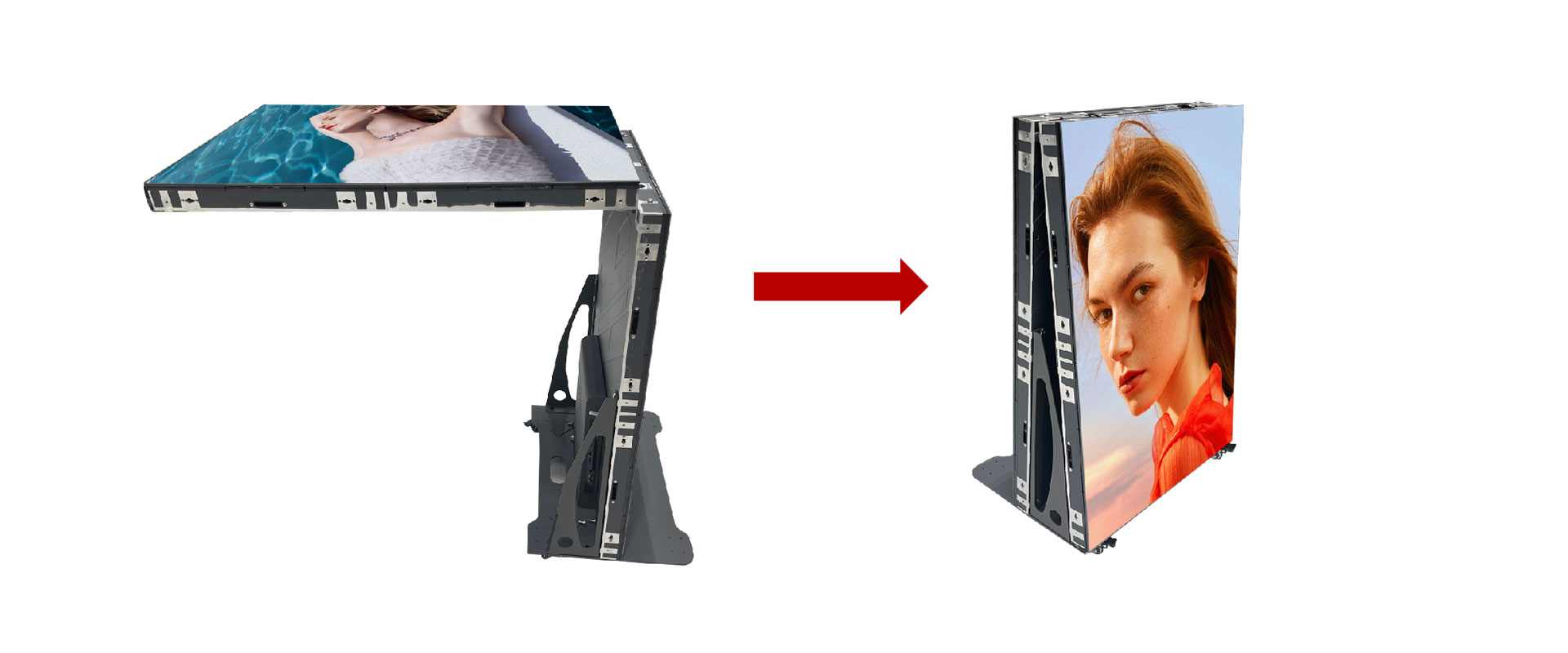

Folding design: easy to fold, greatly reducing the volume, easy to transport and store, and reducing logistics costs.
High-definition large screen, seamless splicing:

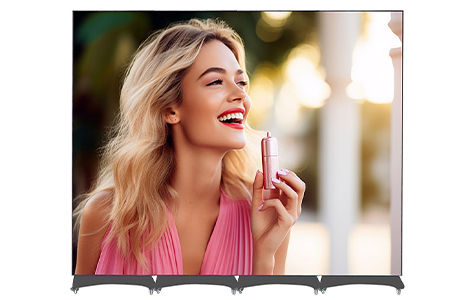

Seamless splicing technology: multiple devices are spliced without black edges, the picture is complete, and the visual effect is better.

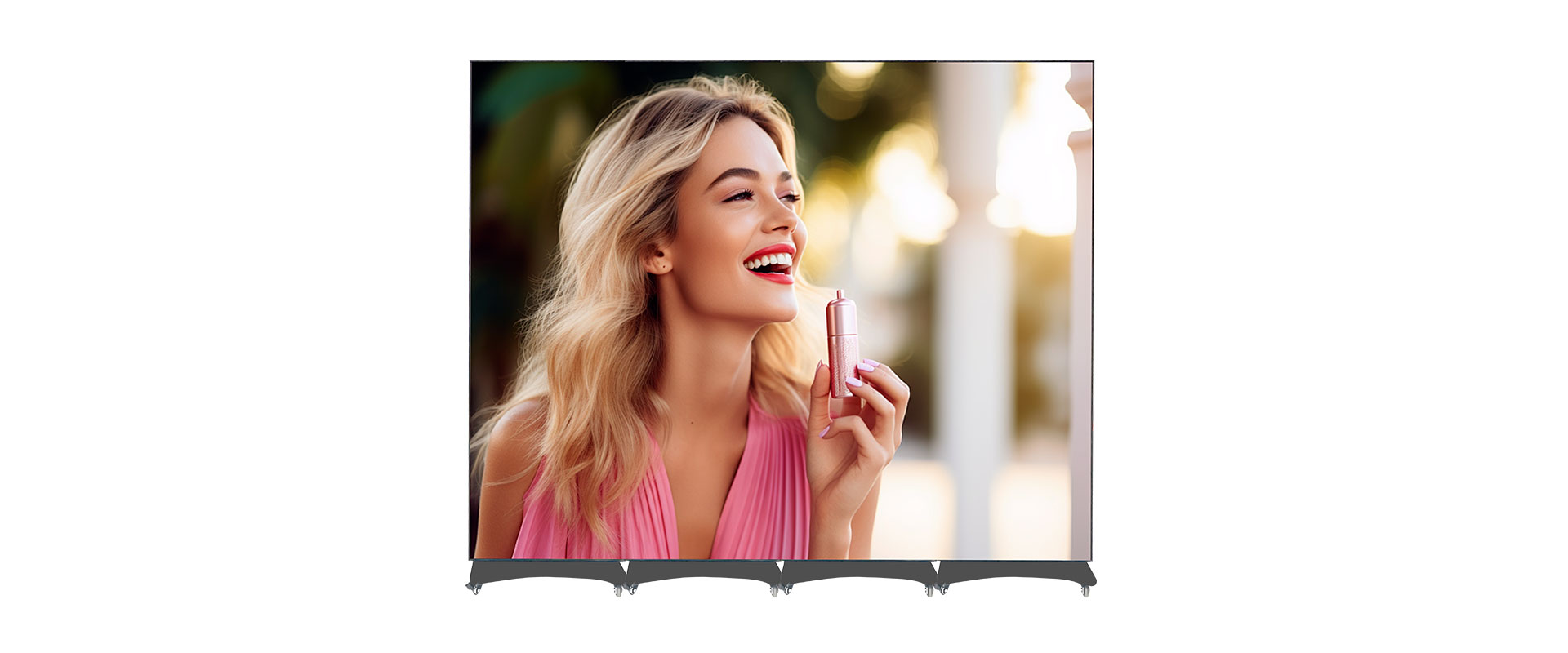

High-definition display: high resolution, bright colors, delicate pictures, and enhanced advertising appeal.
Sturdy and durable, stable and reliable:

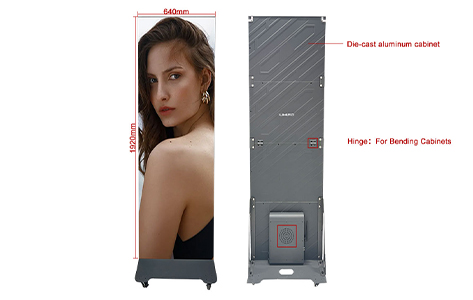

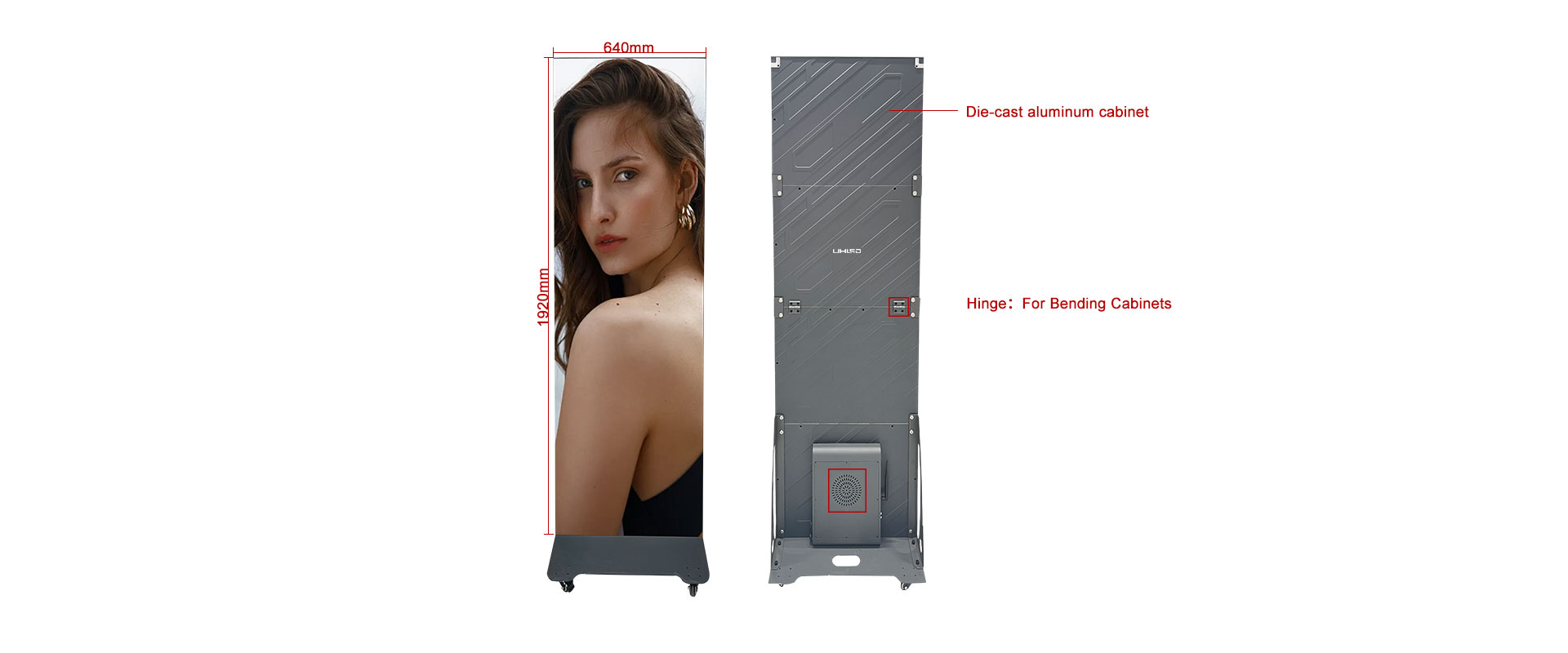

Die-cast aluminum box: high-strength material, pressure-resistant and drop-proof, not easy to deform, and extended service life.
Stable performance: adapt to a variety of environments, long-term stable operation, and reduce maintenance costs.
Technical Parameter | |||||||
Pixel Pitch | P1.25 | P1.538 | P1.839 | P1.86 | P2 | P2.5 | P2.5 |
Application | Indoor | Outdoor | |||||
Module Size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
Cabinet Size | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm |
LED Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 SMD2020 |
SMD1415 |
Cabinet Density | 640000dot/㎡ | 422754dot/㎡ | 295690dot/㎡ | 289051dot/㎡ | 250000dot/㎡ | 160000dot/㎡ | 160000dot/㎡ |
Cabinet Weight | 49kg | 49kg | 49kg | 49kg | 49kg | 49kg | 49kg |
Brightness | 600cd/㎡ | 600cd/㎡ | 600cd/㎡ | 600cd/㎡ | 800cd/㎡ | 800cd/㎡ | 5000cd/㎡ |
