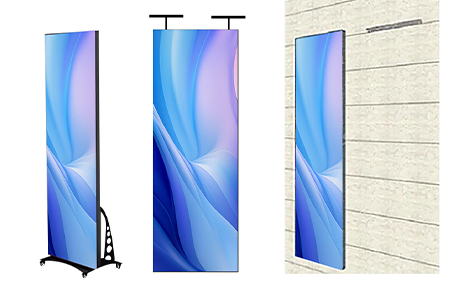

Multiple installations, strong adaptability: Provide wall-mounted, hanging, vertical and other installation methods, which can be flexibly selected according to the on-site environment to meet the installation needs of different scenes.

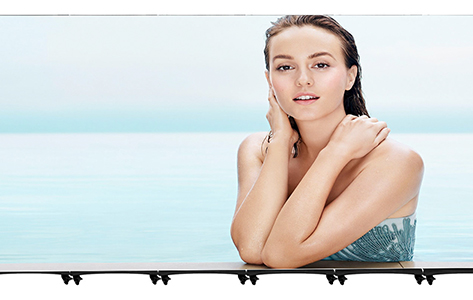

Seamless splicing, large screen shock: Support multiple devices seamless splicing, create an ultra-large display screen, bring a shocking visual experience, suitable for brand promotion, product display and other scenes.
Single display, flexible deployment: Support single independent use, can be flexibly deployed according to actual needs, suitable for various indoor scenes, such as shopping malls, supermarkets, hotels, cinemas, etc.
High-definition vision, strong impact: Adopting high-definition LED poster screen, the picture is clear and delicate, the color is bright and full, which can effectively attract the audience’s attention and improve the advertising communication effect.
| Technical Parameter | |||||||
| Pixel Pitch | P1.25 | P1.538 | P1.839 | P1.86 | P2 | P2.5 | P2.5 |
| Application | Indoor | Outdoor | |||||
| Module Size | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Cabinet Size | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm | 640*1920mm |
| LED Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 SMD2020 |
SMD1415 |
| Cabinet Density | 640000dot/㎡ | 422754dot/㎡ | 295690dot/㎡ | 289051dot/㎡ | 250000dot/㎡ | 160000dot/㎡ | 160000dot/㎡ |
| Cabinet Weight | 49kg | 49kg | 49kg | 49kg | 49kg | 49kg | 49kg |
| Brightness | 600cd/㎡ | 600cd/㎡ | 600cd/㎡ | 600cd/㎡ | 800cd/㎡ | 800cd/㎡ | 5000cd/㎡ |
