IP66 Aluminum Cabinet

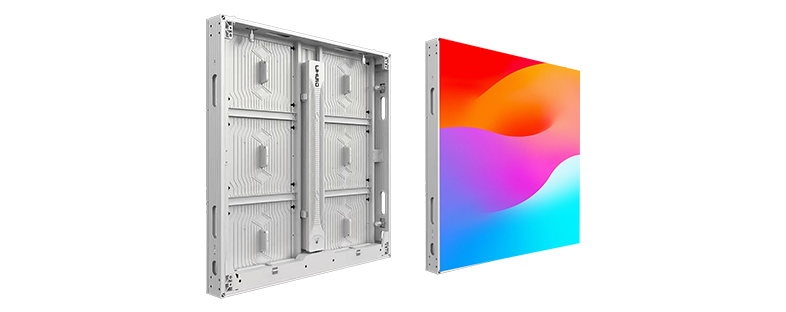

Aluminum Cabinet Outdoor LED Display
LD3
Product Features
7

Waterproof grade IP66: The high protection grade design ensures that the display screen can still operate stably under harsh outdoor weather conditions (such as rain, snow, dust, etc.), and is suitable for various outdoor environments.

8

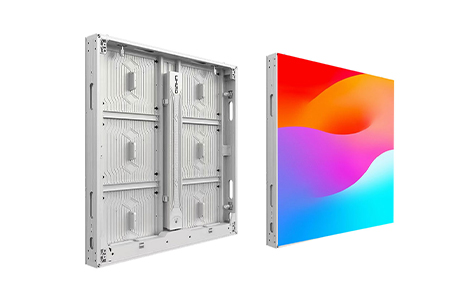

Lightweight design: The aluminum cabinet shell is light and strong, reducing the overall weight, facilitating installation and maintenance, while maintaining high strength and durability.

9

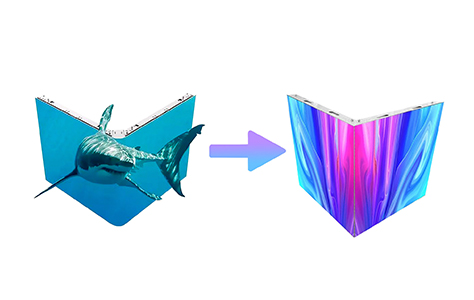

Right-angle and corner design: Supports flexible installation methods, can adapt to different scene requirements, especially suitable for complex installation environments that require right-angle or corner splicing, to achieve seamless splicing effects.

10

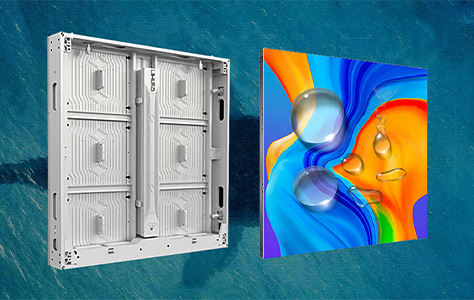

High brightness and clarity: High-quality LED lamp beads are used to ensure high brightness and clarity in strong light environments, suitable for outdoor advertising, stage backgrounds, stadiums and other scenes.

LD8

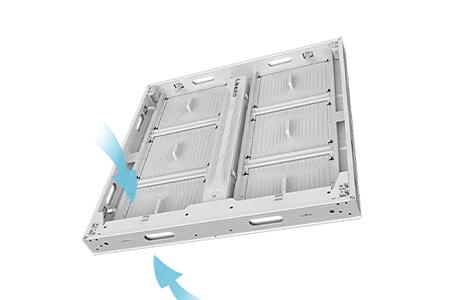

Excellent heat dissipation performance: Aluminum material has good heat dissipation performance, effectively extending the service life of the display screen and ensuring long-term stable operation.

LD9

Easy to maintain: Modular design supports quick disassembly and replacement, reducing maintenance costs and time.

Specs
Title
Technical Parameter
Pixel Pitch P4.4 P5.7 P6.67 P8 P10
Module Size 480*320mm 480*320mm 480*320mm 480*320mm 480*320mm
Module Resolution 109*72dot 84*56dot 144*144dot 120*120dot 96*96dot
Cabinet Size 960*960*77mm 960*960*77mm 960*960*77mm 960*960*77mm 960*960*77mm
Cabinet Resolution 218*218dot 168*168dot 144*144dot 120*120dot 96*96dot
LED Configuration SMD2727 SMD2727 SMD2727 SMD2727 SMD2727
Pixel Density 51625dot/㎡ 30625dot/㎡ 22500dot/㎡ 15625dot/㎡ 10000dot/㎡
Cabinet Weight 24.5kg 24.5kg 24.5kg 24.5kg 24.5kg
IP Ratingfront/back IP66 IP66 IP66 IP66 IP66
Brightness >6000CD/㎡ >6000CD/㎡ >6000CD/㎡ >6000CD/㎡ >6000CD/㎡
Refresh Frequency 3840HZ 3840HZ 3840HZ 3840HZ 3840HZ
