Iron Cabinet

outdoor
Product Features
Waterproof-surface

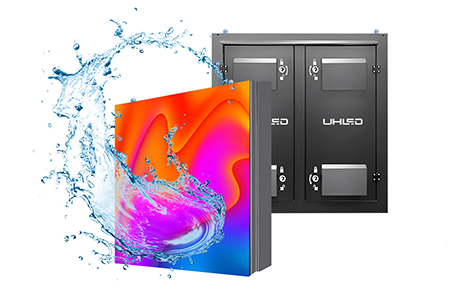

 Surface waterproofing: Fearless of wind and rain, stable operation

The outdoor environment is changeable, and wind, rain, dust and moisture are common challenges for display screens. Our LED display screens use advanced surface waterproofing technology to ensure that the display screens can still operate stably under adverse weather conditions. Whether it is a heavy rain or a high humidity environment, the display screen can maintain a clear and stable picture to avoid failures caused by moisture intrusion. This design not only extends the service life of the display screen, but also reduces maintenance costs, so you have no worries.

Post-maintenance

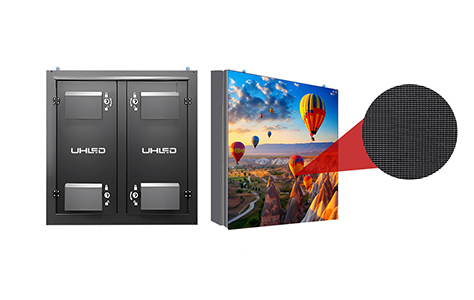

High brightness: Clear visibility

In outdoor environments with strong direct light, ordinary displays are often difficult to maintain clear visibility. Our LED display screen has ultra-high brightness, and the picture is still clear and bright even in direct sunlight, ensuring that information transmission is not disturbed by any light. Whether it is day or night, the display screen can provide excellent visual effects, attract more attention, and enhance advertising effects and brand image.

Large-lamp-beads-high-brightness-high-definition-display

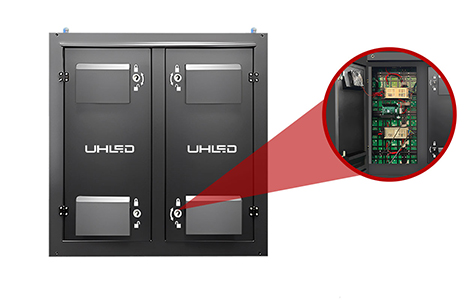

 Post-maintenance design: convenient, efficient and cost-saving

Traditional LED display maintenance often requires disassembly from the front, which is time-consuming and labor-intensive. Our display adopts an innovative post-maintenance design, and all maintenance operations can be completed from the back without disassembling the front of the display. This not only greatly simplifies the maintenance process, but also reduces maintenance time and labor costs. Whether it is replacing modules or performing daily maintenance, the post-maintenance design allows you to easily deal with it and ensure that the display is always in the best condition.

LD7

High brightness and clarity: High-quality LED lamp beads are used to ensure high brightness and clarity in strong light environments, suitable for outdoor advertising, stage backgrounds, stadiums and other scenes.

LD8

Excellent heat dissipation performance: Aluminum material has good heat dissipation performance, effectively extending the service life of the display screen and ensuring long-term stable operation.

LD9

Easy to maintain: Modular design supports quick disassembly and replacement, reducing maintenance costs and time.

Specs
Title
Technical Parameter
Pixel Pitch P4 P5 P6 P8 P10
Module Size 320*160mm 320*160mm 192*192mm 256*128mm 320*160mm
Module Resolution 80*40dot 64*32dot 32*32dot 32*16dot 32*16dot
Cabinet Size 960*960mm 960*960mm 960*960mm 960*960mm 960*960mm
LED Configuration SMD1921
SMD1820
SMD1921 SMD3535 SMD3535 SMD3535
Pixel Density 62500dot/㎡ 40000dot/㎡ 27778dot/㎡ 15625dot/㎡ 10000dot/㎡
IP Rating(front/back) IP65 IP65 IP65 IP65 IP65
Brightness Intensity 5500CD/㎡ 5200CD/㎡ 5500CD/㎡ >6000CD/㎡ >6000CD/㎡
Refresh Frequency 1920-3840HZ 1920-3840HZ 1920-3840HZ 1920-3840HZ 1920-3840HZ
